Name: VEVOR 3 Axis 3018 Grbl Control CNC Router Engraving Machine 300X180X45mm for Wood PVC Injection Molding Material (Basic)
Brand: VEVOR
SKU: DKJ3Z3018DKJJCK01V2
Price: 163.99 EUR
Availability: InStock
Rating: 4.70 (141 reviews)

Features & Details

CNC 3018 Router Machine: CNC 3018 PRO is an upgraded version of 3018 CNC. We provide a detailed user manual, assembly instructions, and installation video for your convenience. Assemble the engraver machine according to the installation instructions. You can enjoy the delight of engraving plastics, soft aluminum, acrylics, PVC, PCB, and many more. This product does not include a laser head and can be purchased by yourself.

Large Working Area: The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. Three refined axes are designed to achieve plane engraving. With the knob, the axes can be moved manually, which facilitates the carving tool settings. The driving units consist of stainless steel screw rods. It uses double copper nuts to clear round trip errors.

Excellent Motor: This CNC engraving machine is equipped with three stepper motors(1.3A; 12V; 0.25 Nm torque) and 775 DC(12-24V) 24V spindle motors with a rotational speed of 10,000 r/min. And the engraver supports Windows 7, Windows 8, Windows 10, Linux, macOS system, and other software to directly import .nc/.txt/.tape/.gcode format files for engraving.

Upgraded Control Board: The integrated GRBL control features full functionality and stability. And the advantages of the offline controller lies in the following ones: 1. No need to connect to the computer; 2. Arbitrary selection of offline files for engraving. 3. Manually adjust the X, Y, and Z axes position as the engraving starting point, manually turn on or off the spindle.4. High precision: less than 0.003 inches.

Sturdy Material: The frame is mainly made of aluminum alloy and Bakelite materials, with high strength and precision. The triangular side support can improve the motion accuracy of the x-axis. Moreover, it is durable enough to withstand the rigors of all-day use repeatedly.

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

Why Choose VEVOR?

Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service

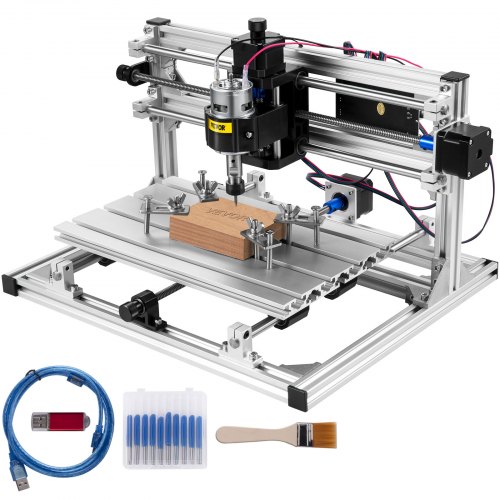

CNC 3018 Engraving Machine

Easy to Use & Upgrade Material & Complete Accessories

This CNC engraving machine with an effective working area of 11.8(X)x7.1(Y)x1.8(Z) inch is made of aluminium alloy. It features a USB port, GRBL control board, convenient for you to operate efficiently with/without computers. It is an ideal tool to engrave all types of plastics, soft aluminum, wood, PVC, etc., which is an excellent affordable self-learning engraving tool.

Note: The machine does not come with a laser module. If necessary, you can purchase our modules to make the engraving machine more efficient.
CNC 3018 Router Machine
Large Working Area
Excellent Motor
Upgraded Control Board
Sturdy Material

Large Working Area

The effective engraving area of this engraving machine is 11.8(X) x 7.1(Y) x 1.8(Z) inches. The axes are equipped with knobs to help you move the carving machine manually, significantly improving working efficiency for a precise carving setting.

Powerful Motor

There are three stepper motors on three axes for smooth movement. The 775 DC(12-24V)24V spindle motor on the Z-axis can reach the speed of 10000r/min.

Functional Control Board

The GRBL control board could be connected via a USB interface to a computer. It features full functionality and can gear toward long-lasting use.

Extraordinary Quality

Constructed with aluminum alloy, the CNC 3018 PRO is characterized by good appearance, high precision, and durability.

Easy to Install

We provide a detailed user manual, assembly instructions, and installation video for your convenience. Assemble the engraver machine according to the installation instructions.

Extensive Application

This CNC engraving machine can engrave all types of plastics, soft aluminum, woods, acrylics, PVCs, PCBs, and a wide range of other soft materials.

Package Content

1 x 3018 CNC Router Kit
1 x U-Disk (Software & Instruction)
1 x Set of Milling Cutter
1 x Cable
1 x Brush
1 x Manual

Specifications

Model: VG-S3018
Effective Working Area(X x Y x Z): 11.8 x 7.1 x 1.8 inch / 300 x 180 x 45 mm
Materials: Aluminium Alloy
Input Power: DC 24V 5A
Driving Units: Stainless Steel Screws
Spindle Speed: 10000 rpm
Stepping Motor: 12V; Torque: 0.25 N / m
Control Software: GRBL Control
Positioning Accuracy: 0.003 in / 0.08 mm
Item Dimension: 18.1 x 15 x 11.2 inch / 461 x 38.3 x 28.5 cm

VEVOR 3 Axis 3018 Grbl Control CNC Router Engraving Machine 300X180X45mm for Wood PVC Injection Molding Material (Basic)

4.7 141 Reviews

163 99 €

Exclusive 5,00€ off for your first three orders on the App.

Model: 15 x 120 inch

3018 Pro Max
15 x 120 inch
3018 Pro

In Stock

Security & Privacy

100% Secure payment

Secure privacy

FREE Returns

30-day Free Returns

Refund for lost packages / damaged items

Professional Service

12-months warranty

Customer Support

Reviews 4.7

All reviews are from verified purchases

Average rating based on 141 reviews

Top Reviews

Make

Reviewed on Dec 25,2024

Works well, there was a bit of practice with the software, but it's a pretty good machine. The delivery was fast, it was brought all the way home.

Remi Stien

Reviewed on Dec 21,2024

Easy to assemble and easy to use. It does what it is supposed to do every time.

Marika

Reviewed on May 11,2024

Please be so kind and send to me your invoice to this order to e-mail: [email protected]. I tried to print it, but it is still in mode "generating" Thanks a loot for your kind support. Maria Rakociova

Tommy

Reviewed on Apr 05,2024

Ok CNC to the price, X axis a little flimsy, but useable, if X gantry was 5cm higher and a firm alu plate insted and very thin alu plate it will be a amazing buy, even for 10% more price. And home/END switches would be nice.. But all in all, not a bad CNC.

Aliale09

Reviewed on Feb 29,2024

Very good device. Works perfect with Java-based software UGSplatform under Linux to send G-Code. The code might be prepared using Inkscape SVG being uploaded to jscut.org. Also autonomous controller with micro-SD card works well with the code and WiFi. No need for extrenal power supply to feed the autonomous controller. Very practical and usefull thing.

Kostan

Reviewed on Jan 09,2024

I am very happy with the machine! I received it quickly. Everything is as described! Quite a must read. To watch a video. It's not easy to me. I have not worked with cnc before. But I'm making progress. I was able to get a g-code from a jpg photo that the machine read and executed on a wooden board. I recommend!

hlaszlo

Reviewed on Dec 15,2023

Excellent DIY machine. It can be used well with technical sense and experience. It was easy to assemble, no problems with it. The control software works perfectly. For more serious cnc work, a design program is recommended, e.g. Freecad.

Ion

Reviewed on Dec 04,2023

Could be a bit better for the money. The stepper motors have a manual krank and on the Y axis I feel a little bump each turn inside the motor (yeah, I checked underneath , it is clean). The workpiece holders have a too small M6 bolt to slide into the tables grooves and it is not wide enougth, it turns inside the groove when trying to fix it in place. Had to make my own.

Jetro

Reviewed on Sep 18,2023

very very good, one of the best purchases I have ever made, excellent equipment and easy to use, I recommend it to everyone

danny

Reviewed on Aug 19,2023

works fell and is doing my lil job, all what i made with this machine was fine and all of them becomes as my expectations. i recomand this machine also vevor support was fine and helped me will all questions
