Features & Details

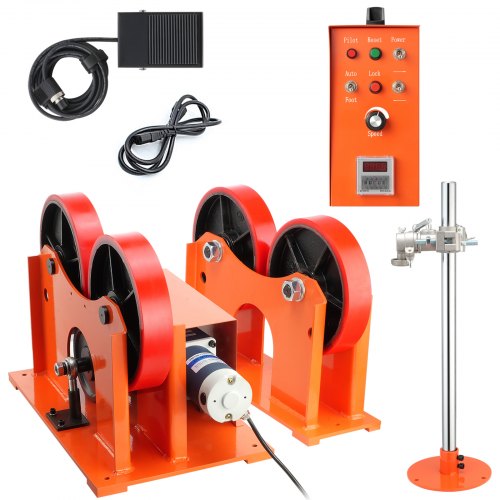

• Enhance Welding Efficiency: VEVOR turning rolls linkage roller boasts 600w high-torque motor that runs at high speed, providing 2205 lbs / 1000kg strong loading and 80-1600mm/min speed adjustment. It offers exceptional stability and effortless support and rotation of large workpieces.
• Handle Different Sized Workpiece: The 9.84-inch large PU roller comes with inner and outer holes, offering flexibility to adjust the roller gap for different workpiece sizes. The inner holes suit 25-800mm O.D. workpieces, and the outer holes are ideal for 600-1400mm O.D. workpieces.
• Sturdy & Stable Construction: Our welding turning roll has a rugged carbon steel construction for high load capacity and longtime use. High quality wear-resistant PU rollers offer greater friction and more stable support for workpiece. Also includes a welding torch stand to secure the welding gun in place.
• 2 Control Modes, Easy to Operate: The rotary turning rolls comes with a manual control box and a foot switch: 1. Select the auto mode, then the rollers will keep rotating at the set speed; 2. Select the foot mode, through the foot switch, the rollers can rotate in a small range, so that the workpiece can move slightly or fine-tune.
• Versatile Applications: Our rotary welding positioner finds utility across a wide spectrum of industries and applications, including tank manufacturing, bridge construction, pipe welding, and more. It provides essential support for a diverse welding tasks, making it an ideal choice for welding professionals.

Frequently Bought Together

Videos for this product

About this item

Product specification

Item Model Number

HDTR-1000

Motor Power

600W

Speed Range

80-1600 mm/min

Horizontal Loading Capacity

2205 lbs / 1000 kg

Roller Size

9.84 in / 250 mm Diameter, 1.97 in / 50 mm Width

Turntable Diameter

12.4'' / 315mm

Net Weight

166.7 lbs / 75.6 kg

Description

VEVOR Turning Rolls Linkage Roller: Weld Faster and Smarter

Elevate your welding projects and achieve flawless results. VEVOR turning rolls linkage roller features 600W high-torque motor for efficient rotation, supporting 2205lbs load capacity. 9.84-inch PU roller offers inner and outer holes, accommodating 25-800mm O.D. and 200-1400mm O.D. workpieces.

Constructed with high-strength carbon steel, our rotary welding positioner boasts exceptional 2205lbs / 1000kg load-bearing capacity. Robust and durable structure can handle various welding tasks while offering corrosion resistance for long-term use.

Our polyurethane rollers provide high stability and balance. Crafted from wear-resistant and durable polyurethane material, they minimize workpiece damage, offer improved friction for better control over workpiece rotation speed, and extend equipment lifespan.

2 Control Modes Available– a control box and a foot switch: 1. Opt for the auto mode to maintain continuous rotation at the set speed. 2. Opt for the foot mode, and use the foot pedal switch to control stop/start and rotate the rollers within a small range.

Our welding turning roll is excel in welding various cylindrical workpieces. Whether it's metal welding, large pipe welding, heavy machinery welding, or automated welding, it ensures efficient welding performance, meeting your welding needs with precision and efficiency.
