Features & Details

• Built-In Optical Eye: The Optical eye of this vinyl cutter plotter is a laser pointing device for Contour Cutting, supported by software such as Signcut and Signmaster. This feature enables users to cut away the excess medium from the design that is not needed, leaving just the contour feature around your design.
• Efficient LED Display: Coming with an illuminated LED screen and a large control panel, this plotter cutter simplifies the previous tedious buttons, making the operation much more explicit. With the adjustable cutting pressure 0-500g, and adjustable cutting speed 15-800 mm/s, this device will offer you a sensitive and intelligent operation.
• Precise Cutting: This vinyl cutter includes three replaceable blades and a precise dividing ruler, enjoying a good reputation for its incredibly sharp and accurate performance. The Max Cutting Width: 285 mm / 11.2 in; Max Paper Feed: 375 mm / 14.8 in; Cutting Precision: +/-0.01 mm / 0.0004", definitely meeting your multiple requirements.
• Versatile Compatibility: This plotter cutter vinyl includes Signcut software with a USB interface & COM port for easier connection. Support DM/PL, HP/GL multiple languages. Signmaster software supports Windows XP/Vista/7/8/10/11 and Signcut software supports Mac system.
• Powerful Design for Multiple Uses: Our intricately designed cutting plotter is equipped with an aluminum alloy frame and fuses, which equips with powerful functions with high-level security. Perfect for any tabletop and small space. It is suitable for stickers, crepe paper, and many other materials and can be used for car stickers, traffic signs, balloons, helmets, etc.

Frequently Bought Together

Videos for this product

About this item

Product specification

Model

KH-375A

Max Cutting Width

285 mm / 11.2 in

Max Paper Feed

375 mm / 14.8 in

Motor Type

Stepper

Material

Aluminum Alloy

Power

95W

Mother-board

ARM

Max Cutting Force

500 g / 1.1 lbs

Max Cutting Speed

800 mm/s / 31.5 ips

Buffer

1-4M

LCD Display

CN/EN

Real-time Speed Adjusting

Support

Interface

COM+USB / COM+USB+U-DISK

Re-cutting Function

Support

Re-cutting Accuracy

±0.004 in / ±0.01 mm

Resolution Ratio

0.0245 mm / step

Language Format

DMPL / HPGL

Voltage

AC 85-264V

Max Cutting Thickness

3 mm / 0.12 in

Included Software

Signcut

OS Compatibility

Windows and Mac

Product Size (L x W x H)

53 x 24 x 22 cm / 20.9 x 9.4 x 8.7 in

Weight

9.2 kg /20.28 lbs

Description

375 mm Semi-Automatic Vinyl Cutter Plotter

This handpicked vinyl plotter is loaded with advanced features that will bring professional-looking projects. It delivers 375 mm / 14.8" max paper feed with 285 mm / 11.2" max cutting width. A built-in optical eye for laser guiding will semi-automatically and accurately scan all kinds of marks. The robust construction with a LED display will help you operate the machine clearly and easily. It can cut various intricate lettering and patterns, including paper, cardstock, vinyl, and fabric.

• Built-In Optical Eye
• Efficient LED Display
• Precise Cutting
• Versatile Compatibility
• Powerful Design for Multiple Uses

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

Optical Eye for Laser Guiding

An optical eye is able to semi-automatically scan items, bringing a superior tracking capability and advanced contour cutting performance. Three adjustable double-spring pinch rollers and aluminum knurled rods ensure the vinyl plotter feeding paper steadily without paper jam.

LED Digital Panel

The vinyl cutting machine is embedded with a backlight display to increase clarity and brightness further. Come with an intuitive digital panel for monitoring the cutting quality from time to time. It delivers a cutting speed of 800 mm/s and a cutting force of 500g.

Accurate Calibration

The ruler guide is integrated for easier measurements, and the 3 vinyl cutting blades can be adjusted to slice through various thicknesses of vinyl. You can even install the included Biro pen component to sketch out your design before cutting.

Flexible Input

This plotter cutter vinyl machine has high compatibility and flexible input, which can be connected through COM and USB. It is compatible with multiple computer systems like Windows XP/VISTA/7/8/10 (32&64).

Complete Accessories

This sign cutting plotter includes complete accessories for better use, such as USB flash drive including installation and user manual, 5 vinyl sheets, cutting mat and replaceable blades. It also offers a fuse possessing of emergency stop function to prevent you from the danger.

Extensive Use

The vinyl cutter is capable to flawlessly cut various materials, giving the cutter superior control as you create fancy logos, shapes and letters. As a result, the vinyl printer is widely used in many areas that you can apply to advertise engraving, heat transfer lettering film, etc.

Specifications

• Model: KH-375A
• Max Cutting Width: 11.2 in / 285 mm
• Max Paper Feed: 14.8 in / 375 mm
• Motor Type: Stepper
• Material: Aluminum Alloy
• Power: 95W
• Mother-board: ARM
• Max Cutting Force: 500 g / 1.1 lbs
• Max Cutting Speed: 800 mm/s / 31.5 ips
• Buffer: 1-4M
• LCD Display: CN/EN
• Real-time Speed Adjusting: Support
• Interface: COM+USB
• Re-cutting Function: Support
• Re-cutting Accuracy: ±0.004 in / ±0.01 mm
• Resolution Ratio: 0.0245 mm / step
• Language Format: DMPL / HPGL
• Voltage: AC 85-264V
• Max Cutting Thickness: 0.12 in / 3 mm
• Included Software: Signcut
• OS Compatibility:Windows and Mac
• Product Size (L x W x H): 20.9 x 9.4 x 8.7 in / 53 x 24 x 22 cm
• Weight: 20.28 lbs / 9.2 kg

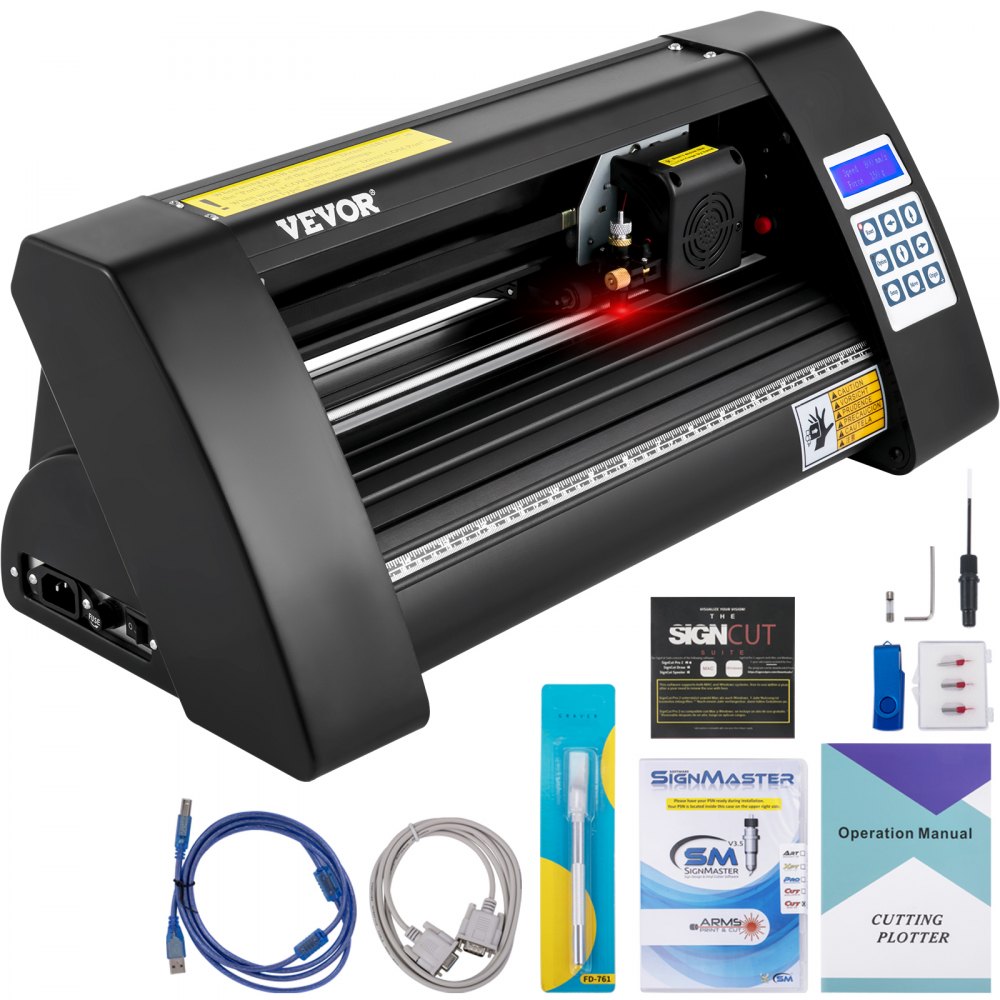

Package Content

• 1 x Cutting Plotter
• 1 x Power Supply Cable
• 3 x Blades
• 1 x Graver
• 1 x Blade Holder
• 1 x Pen Holder
• 1 x Ball Pen Core
• 5 x Vinyl Sheets
• 1 x Cutting Mat
• 1 x COM Connection Cable
• 1 x USB Cable
• 1 x Spanner
• 1 x USB Driver
• 1 x Bracket Screws

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

• Premium Tough Quality
• Incredibly Low Prices
• Fast & Secure Delivery
• 30-Day Free Returns
• 24/7 Attentive Service

375 mm Semi-Automatic Vinyl Cutter Plotter

This handpicked vinyl plotter is loaded with advanced features that will bring professional-looking projects. It delivers 375 mm / 14.8" max paper feed with 285 mm / 11.2" max cutting width. A built-in optical eye for laser guiding will semi-automatically and accurately scan all kinds of marks. The robust construction with a LED display will help you operate the machine clearly and easily. It can cut various intricate lettering and patterns, including paper, cardstock, vinyl, and fabric.

• Built-In Optical Eye
• Efficient LED Display
• Precise Cutting
• Versatile Compatibility
• Powerful Design for Multiple Uses

Optical Eye for Laser Guiding

An optical eye is able to semi-automatically scan items, bringing a superior tracking capability and advanced contour cutting performance. Three adjustable double-spring pinch rollers and aluminum knurled rods ensure the vinyl plotter feeding paper steadily without paper jam.

LED Digital Panel

The vinyl cutting machine is embedded with a backlight display to increase clarity and brightness further. Come with an intuitive digital panel for monitoring the cutting quality from time to time. It delivers a cutting speed of 800 mm/s and a cutting force of 500g.

Accurate Calibration

The ruler guide is integrated for easier measurements, and the 3 vinyl cutting blades can be adjusted to slice through various thicknesses of vinyl. You can even install the included Biro pen component to sketch out your design before cutting.

Flexible Input

This plotter cutter vinyl machine has high compatibility and flexible input, which can be connected through COM and USB. It is compatible with multiple computer systems like Windows XP/VISTA/7/8/10 (32&64).

Complete Accessories

This sign cutting plotter includes complete accessories for better use, such as USB flash drive including installation and user manual, 5 vinyl sheets, cutting mat and replaceable blades. It also offers a fuse possessing of emergency stop function to prevent you from the danger.

Extensive Use

The vinyl cutter is capable to flawlessly cut various materials, giving the cutter superior control as you create fancy logos, shapes and letters. As a result, the vinyl printer is widely used in many areas that you can apply to advertise engraving, heat transfer lettering film, etc.

Package Content

• 1 x Cutting Plotter
• 1 x Power Supply Cable
• 3 x Blades
• 1 x Graver
• 1 x Blade Holder
• 1 x Pen Holder
• 1 x Ball Pen Core
• 5 x Vinyl Sheets
• 1 x Cutting Mat
• 1 x COM Connection Cable
• 1 x USB Cable
• 1 x Spanner
• 1 x USB Driver
• 1 x Bracket Screws

Specifications

• Model: KH-375A
• Max Cutting Width: 11.2 in / 285 mm
• Max Paper Feed: 14.8 in / 375 mm
• Motor Type: Stepper
• Material: Aluminum Alloy
• Power: 95W
• Mother-board: ARM
• Max Cutting Force: 500 g / 1.1 lbs
• Max Cutting Speed: 800 mm/s / 31.5 ips
• Buffer: 1-4M
• LCD Display: CN/EN
• Real-time Speed Adjusting: Support
• Interface: COM+USB
• Re-cutting Function: Support
• Re-cutting Accuracy: ±0.004 in / ±0.01 mm
• Resolution Ratio: 0.0245 mm / step
• Language Format: DMPL / HPGL
• Voltage: AC 85-264V
• Max Cutting Thickness: 0.12 in / 3 mm
• Included Software: Signcut
• OS Compatibility:Windows and Mac
• Product Size (L x W x H): 20.9 x 9.4 x 8.7 in / 53 x 24 x 22 cm
• Weight: 20.28 lbs / 9.2 kg
