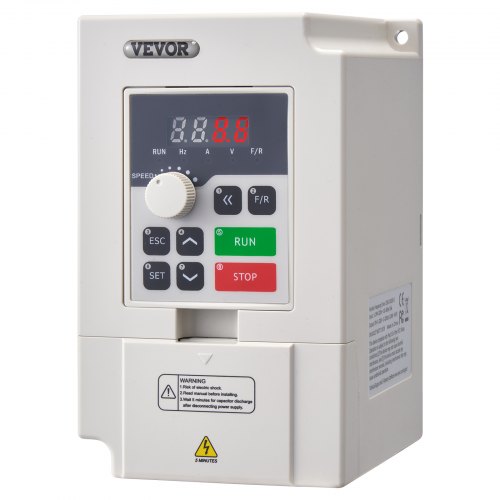

VEVOR VFD 4HP 3KW 14A 1 or 3 Phase AC 220V Input to 3 Phase AC 0~220V Output
VEVOR VFD 4HP 3KW 14A 1 or 3 Phase AC 220V Input to 3 Phase AC 0~220V Output
VEVOR VFD 4HP 3KW 14A 1 or 3 Phase AC 220V Input to 3 Phase AC 0~220V Output
VEVOR VFD 4HP 3KW 14A 1 or 3 Phase AC 220V Input to 3 Phase AC 0~220V Output
VEVOR VFD 4HP 3KW 14A 1 or 3 Phase AC 220V Input to 3 Phase AC 0~220V Output
VEVOR VFD 4HP 3KW 14A 1 or 3 Phase AC 220V Input to 3 Phase AC 0~220V Output
VEVOR VFD 4HP 3KW 14A 1 or 3 Phase AC 220V Input to 3 Phase AC 0~220V Output
VEVOR VFD 4HP 3KW 14A 1 or 3 Phase AC 220V Input to 3 Phase AC 0~220V Output
VEVOR VFD 4HP 3KW 14A 1 or 3 Phase AC 220V Input to 3 Phase AC 0~220V Output
VEVOR VFD 4HP 3KW 14A 1 or 3 Phase AC 220V Input to 3 Phase AC 0~220V Output
VEVOR VFD 4HP 3KW 14A 1 or 3 Phase AC 220V Input to 3 Phase AC 0~220V Output
VEVOR VFD 4HP 3KW 14A 1 or 3 Phase AC 220V Input to 3 Phase AC 0~220V Output
VEVOR VFD 4HP 3KW 14A 1 or 3 Phase AC 220V Input to 3 Phase AC 0~220V Output
VEVOR VFD 4HP 3KW 14A 1 or 3 Phase AC 220V Input to 3 Phase AC 0~220V Output
VEVOR VFD 4HP 3KW 14A 1 or 3 Phase AC 220V Input to 3 Phase AC 0~220V Output
VEVOR VFD 4HP 3KW 14A 1 or 3 Phase AC 220V Input to 3 Phase AC 0~220V Output
VEVOR VFD 4HP 3KW 14A 1 or 3 Phase AC 220V Input to 3 Phase AC 0~220V Output
VEVOR VFD 4HP 3KW 14A 1 or 3 Phase AC 220V Input to 3 Phase AC 0~220V Output

Features & Details

  • Key Parameters: Power: 3KW, Horsepower: 4HP, Input Current: 14A. Input Phase: Single-phase AC 220V or Three-phase AC 220V ; Output Phase: Three-phase AC 0~220V. Input Frequency: 50/60Hz ; Output Frequency: 0-2000Hz.
  • Intuitive Display and Button: Our variable frequency drive (VFD) features an intuitive display and easy-to-use buttons, allowing users to get started quickly. The detachable panel can be connected to the corresponding interface for remote control, providing added convenience and flexibility.
  • Safe & Durable: The VFD stands out with a comprehensive protection system, safeguarding against overcurrent, overload, overvoltage, phase loss, and more. These features prioritize your safety and enhance the longevity of the VFD.
  • Efficient Heat Dissipation: This VFD features a powerful cooling fan and multi-hole design, ensuring efficient heat dissipation and enhanced ventilation. It provides stable, long-lasting performance with reduced noise, making it an ideal choice for demanding industrial applications.
  • Wide Versatility: Our VFD is ideal for driving three-phase motors in diverse machinery, including CNC routers, CNC machines, milling machines, drilling machines, compressors, pumps, grinders, centrifuges, and other speed control machines. For heavier motor loads, please choose a higher-powered VFD for best results.
See More

Frequently Bought Together

Videos for this product

Reviews 4.7

All reviews are from verified purchases
Average rating based on 6 reviews
Top Reviews
delapluma delapluma
Reviewed on May 14,2025
Good little frequency drive easy to use and to set , Had a small problem with the display of one of the two I bought but VEVOR has send me inmediately a new one! Very good service !
Dave Dave
Reviewed on Apr 01,2025
Shipping on time Good product Ideal for running a 3 x 400V machine on the home electrical circuit Easy to start up
Lutorm Lutorm
Reviewed on Mar 29,2025
I ordered this to drive my air compressor motor, and it works well. There are a lot of settings to customize, and the manual assumes you know what you're doing. While not mentioned in the description anywhere, it can be controlled both from the front panel, via some external inputs, and also via RS-485 which is very nice. However, there are a few issues that should be mentioned: * There is no provision for strain relief on the power connections. Since this unit appears like it's made to be stand-alone and not mounted in an enclosure, this is bad. You do *not* want something snagging on a wire to rip one of the motor phases out at full speed, it would be a bad day for both the VFD and the person touching the cable. * When the motor is off, I can still hear some high-pitched sounds from the motor. It appears some high-frequency stuff is still getting through.
Alexandru Alexandru
Reviewed on Feb 25,2025
It works well. Instructions are hard to understand. In the end, it started, but I don't realize where the problem was. It started without me knowing what I did.
eugen eugen
Reviewed on Jan 30,2025
it is very good for engines of 0.75-1.2 kW. It also works with 1.5 kW but cannot accelerate in a short time.
Denes Denes
Reviewed on Jan 14,2025
Very good comparing to price, wotking good still, will order next time also, time of articol a week , very good!!

About this item

Product specification
Item Model Number
D100-3.0S2B-S
Horsepower
4HP
Input Voltage
1PH AC220V or 3PH AC220V
Input Current
14A
Output Voltage
3PH AC 0~220V
Power
3KW
Input Frequency
50Hz/60Hz
Output Frequency
0-2000Hz
Net Weight
2.8 lbs / 1.25 kg
Product Dimensions
5.91 x 3.54 x 4.63 inch / 150 x 90 x 117.6 mm
Description
4HP 3KW 14A Variable Frequency Drive
The input of the VFD is single-phase AC 220V (1PH) or three-phase AC 220V (3PH), and the output is three-phase AC 0~220V (3PH). With easy wiring, intuitive display, and comprehensive protections, it simplifies operations, enhances energy efficiency, and minimizes machinery faults.
The variable frequency drive is designed with user-friendliness, featuring an intuitive display and easy-to-use buttons for a quick start. It also includes a detachable panel that can be connected to the corresponding interface for remote control, offering added convenience.
Our VFD comes with intelligent protection system, providing security against overcurrent, overload, overvoltage, and phase loss. It is mainly made of flame-retardant plastic, ensuring high performance and quality from the inside out.
Stable and efficient operation relies on large cooling fans and a multi-hole heat dissipation design, preventing overheating and overloading during extended operation.
Installation Tips: 1. Turn off power when connecting wires 2. For VFD protection, press red 'Stop' button and power off when not in use. 3. Avoid installation in humid or high-temperature environment. 4. For optimal performance with heavier motor loads, consider selecting a higher-powered VFD.
See More

Questions and Answers (1)

1 Questions
Ask a Question
Showing 1-1 of 1
Sort by: Featured questions
Can I connect this VFD (d100-3.0s2b-s) to a direct drive BLDC motor and what are the preferred settings e.g. VF or Vector control ? Best Regards
Answer This Question
This inverter cannot drive BLDC motors, but can drive three-phase asynchronous motors.
By vevor on
