Features & Details

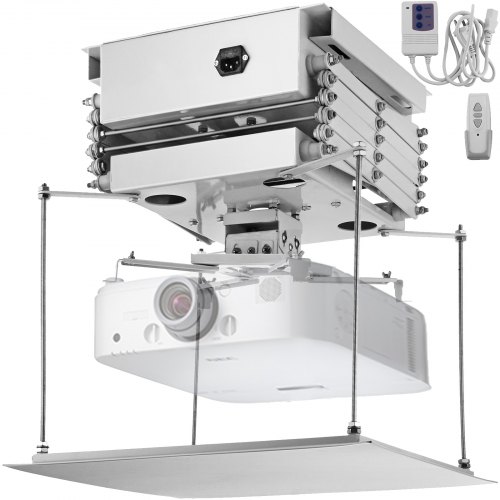

• 【SOLID STRUCTURE】- Cold-roll steel sheet is applied to our projector lift electric, showing good performance in resisting wear and corrosion. The double scissor-type structure and the stout conveyor belt realize the smooth move during the lift, ensuring the stableness as well as accurate positioning. With the standard baseplate (1.64 x 1.64 ft / 500 x 500 mm), it’s safe enough to provide the maximum load of 66.14 lbs (30 kg) under double motors.
• 【HIDDEN TYPE TELESCOPIC】- When the motorized projector lift is not in use, it can be invisible by hiding itself in the ceiling without disturbing the framework. Please learn that our product won’t occupy any space. Instead, your room will keep tidy and pretty due to the hidden design.
• 【CONVENIENT REMOTE CONTROL】- The wireless remote control allows you to control the projector on your cozy sofa or bed. Once starting the electric projector bracket, just press a button, then it will stretch to an appropriate height at a rapid rate (15 RPM, 1 M) with very low noise. Thus, you won’t be bothered about wasting time or disturbing the conference anymore.
• 【EASY INSTALLATION】- We offer you a product manual. It’s simple to install this electric projector lift with easy-to-learn instructions. Before selecting a lift, please ensure the product you want best suits your projector and your space. The size of our product is 1.64 x 1.64 x 1.15 ft (500 x 50 x 350 mm). The suggested open dimension on the false ceiling is 1.54 x 1.54 ft (470 x 470 mm).
• 【WIDE APPLICATION】- This motorized projector bracket is widely used in multifunctional conference rooms, training centers, academic halls, audio-visual education rooms, hotels, stages, classrooms, and other places. Meanwhile, our lift is suitable for various projectors.

• Designed for total concealment of projector
• Positive mechanical lift/drop limits
• Heavy duty construction: 22lbs
• Integrates with most control systems: IR remote control and manual control button
• Space for cable management and projector mounting bracket must be considered when ordering
• 2 years warranty

• Color: White
• Voltage: 220 V
• Stroke: 3.28 ft
• Power: 24 W
• Max. Load: 66.14 lbs
• Baseplate: 1.64 x 1.64 ft
• Dimension: 1.64 x 1.64 x 1.15 ft
• Weight: 48.5 lbs

• Stroke: 3 ft (1 m)
• Power: 24 W
• Voltage: 220 V
• Max Load: 66.14 lbs (30 kg)
• Ceiling Opening Dimensions: 1.54 x 1.54 ft (470 x 470 mm)
• Baseplate: 1.64 x 1.64 ft (500 x 500 mm)
• Item Dimensions: 1.64 x 1.64 x 1.15 ft (500 x 500 x 350 mm)

• 1 X Projector Lift
• 1 x Wireless Remote Control
• 1 x Product Manual
