Features & Details
- Direct Drive Motor: The mini metal lathe machine adopts a direct drive motor, no belt drive, and no need to replace the belt. 800W brushless motor that provides more power and avoids the need for brush replacements, saving time and effort.
- Built to Last: The mini metal lathe is built to last with high-quality HT200 cast iron. They come equipped with wear-resistant and strong metal gears and aluminum alloy handwheels, ensuring a longer service life.
- Continuously Variable: Features a spindle that can turn in both forward and reverse directions with 150-2500 RPM continuously variable speed range. It also has intelligent electric speed controls and a digital display, allowing for convenient data reading.
- Widely Used: 7'' x 16'' metal lathe machine can be used for processing precision parts and models. A wide range of turning pitches can create 19 kinds of threads, 9 kinds of the metric system (0.5-3 mm), and 10 kinds of the imperial system (10-44 TPI).
- Security Comes First: Our power metal lathes have multiple security features in case of emergency, ensuring operator security. These include an emergency stop switch, overload protection, chuck cover power off switch, and a main control panel security switch.
See More
Frequently Bought Together
Videos for this product
Reviews 4.2
All reviews are from verified purchases
Average rating based on 5 reviews
Top Reviews
Alexandru
Reviewed on May 29,2024
I received the lathe very quickly, without damage. It needs to adjust the axial clearance of the gears to reduce the noise. Otherwise, it is an EXCELLENT tool!
KIM
Reviewed on Mar 02,2024
Technically fine. Motor control is faulty. It reacts late to the speed controller (potentiometer), so it starts jerkily. Unstable rotation during work. You can't turn it on with the green button, You can't turn it on with the green button.The green button puts it into operation by default,and then the direction of rotation can be selected.After every "F" or "R" switch off, the machine switches off completely, in all such cases, it must be put into operation with the green button.This does not ensure continuous work.The control panel is likely to be defective, Since the machine is under warranty, I do not perform measurements in the control unit.I have notified the technical team, I am waiting for their reply.Overall, the machine is good, so it is recommended for purchase.Service help, I will see how helpful they are.
Chris
Reviewed on Feb 23,2024
DIY ENTHUSIAST FROM IRELAND
Well packed,delivered on time. Great little lathe, it works well but you have to set it up I consider it the perfect choice for home maintenance and for diy repairs and small projects.
Mike Estrada
Reviewed on Sep 07,2023
The quality of this product is very good
Fezyx
Reviewed on Apr 16,2025
Overall I am very disappointed, I have many products from Vevor, from compressors, to heatpresses, all good, but this is a bad joke.
when it arrived, the bolts and nuts that held it in the bend were not even tightened, it was wobbly there, the toolpost is made of some crappy aluminum, unusable, but I expected that, so I bought a quick tool 6"-12" with the idea that it would fit on 7", it doesn't :)
when I turned it on, the motor hummed but nothing happened, after uncovering it there was a piece of wood in the gears, it didn't have enough power to push it through, after cleaning it was ok.
I doubt that it is capable of doing any work without significant modifications.
last purchase on Vevor.
About this item
Product specification
- Model
- MX-S716G
- Main Material
- HT200 Cast Iron
- Lifespan
- 3 Years
- Spindle Speed
- 150-2500 RPM
- Hole Through Spindle Diameter
- 32 mm / 1.26 in
- Spindle Taper
- MT5
- Tail Stock Taper
- MT2
- Motor Power
- 800W
- Voltage
- 110V, 60 Hz
- Chuck Diameter
- 100 mm / 3.93 in
- Net Weight
- 39 kg / 85.98 lbs
- Product Dimensions(L x W x H)
- 800 x 340 x 360 mm / 31.5 x 13.4 x 14.2 in
Description

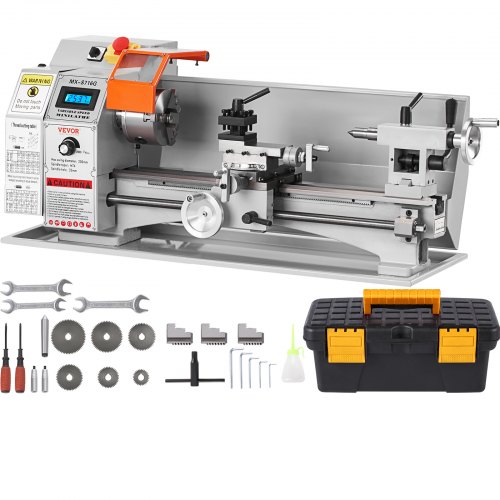

Direct Drive Motor Mini Metal Lathe
Are you ready to get more done? Our mini metal lathe measures 7 in x 16 in and features an 800W direct drive motor, no maintenance, and no belt drive. VEVOR benchtop metal lathe is specifically designed for creating complex and precise parts, simple to operate even for the novice.
Key Features
Protection Devices
Our mini metal lathe machine is designed with a probe window-type shield and power-off protection, ensuring more secure processing.
Aluminum Alloy Handwheel
The aluminum alloy handwheel is equipped with a high-precision scale for easy operation and is designed to create complex and fine parts.
Automatic Feed Screw
The V-shaped precision steel guide with the automatic feed screw and high strength ensures the parallelism of the main axis and lathe body.
See More
Questions and Answers (14)
Showing 1-14 of 14
Sort by: Featured questions
Er det 220v på denne maskinen
Answer This Question
Explain table type
Can it be supplied 220v
Answer This Question
Does the VEVOR K12-125 125mm chuck fit this lathe?
Answer This Question
The 100mm chuck can be installed directly, while the 125mm chuck requires you to make a flange connection yourself before it can be installed on the lathe.
By vevor on
jaká je doba dodávky
Answer This Question
Běžná doba dodání produktu je 2-6 pracovních dnů, doprava těžkých produktů (čistá hmotnost nad 66 liber) trvá asi 10-15 pracovních dnů. Podrobnosti naleznete na následujícím odkazu.
https://eur.vevor.com/pages/shipping-policy
By vevor on
What is the shipping cart size and weight of the box and lathe
Answer This Question
VEVOR Mini Metal Lathe Machine, 7'' x 16'', 800W Precision Benchtop Power Metal Lathe, 150-2500 RPM Continuously Variable Speed, with 3.9'' 3-jaw Metal Chuck Tool Box for Processing Precision Parts
