Features & Details

• Electronic Gear System: Electronic Gear System: Seamlessly switch between metric and imperial threads without changing gears. Our benchtop metal lathe saves you time with simple panel controls. Supports 9 metric threads (0.5-3 mm), 19 imperial threads: 6-40 T.P.I., and custom mode: 0.5-3 mm
• Belt-Free Operation: With a belt-free spindle drive, there are no belt consumables, reducing costs and simplifying maintenance for a smoother, more efficient operation
• Fully Automatic Feed: Adjust the stroke (center distance) from 0 to 450 mm and feed rate from 0.01 to 0.40 mm via the panel. Our power metal lathe can fully automate threading. The 8.7 x 18 in worktable allows for processing materials with a maximum diameter of 220 mm and length of 450 mm
• High Precision Processing: Featuring max speed of 2500 RPM with variable speed control, our metal lathe machine allows for adjusting machining speed based on material and process for optimal accuracy. The tailstock handle and movable center feature precise scales for fine-tuned control during precision work
• Versatile Applications: Capable of machining soft metals (gold, silver, copper, aluminum), acrylic, plastic, and more. Our bench metal lathe is ideal for drilling, boring, reaming, knurling, threading, and other machining operations

Frequently Bought Together

Videos for this product

About this item

Product specification

Item Model Number

MX-S450

Power

1250W

Spindle Accuracy

0.001 in / 0.03 mm

Speed

2500 RPM

Max Processed Material Diameter

8.7 in / 220 mm

Max Processed Material Length

18 in / 450 mm

Feed Rate

0.0008 in / 0.02 mm

Max Aluminum Bar Turning Capacity

50 mm Dia Aluminum Bar, 2 mm on one side

Main Material

Cast Iron + Aluminum Alloy

Net Weight

134.7 lbs / 61.10 kg

Product Dimensions

35.43 x 15.75 x 14.96 in / 900 x 400 x 380 mm

Description

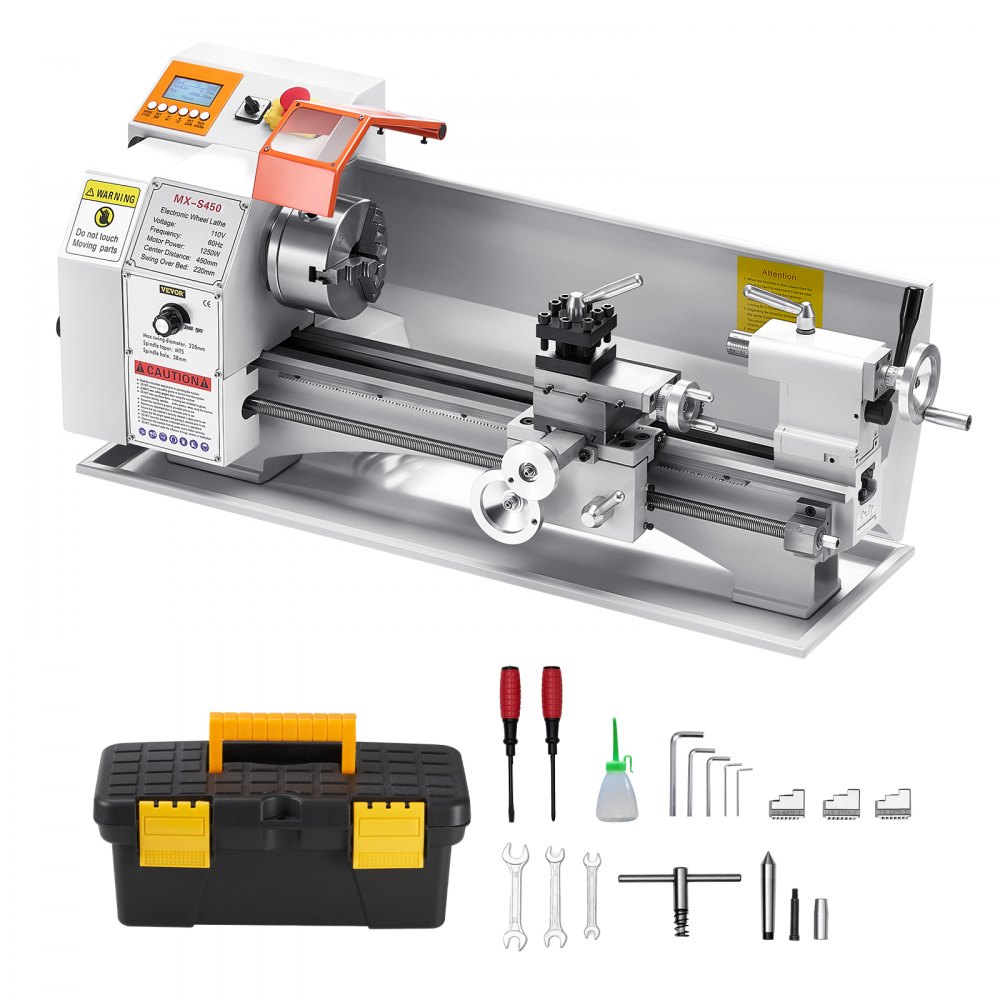

8.7 x 18 in Fully Automatic Benchtop Metal Lathe

This power metal lathe has an electronic threading system, allowing easy switching between metric and imperial units. It supports fully automatic feeding and has a belt-free drive system. It is ideal for processing soft metals, acrylics, and plastics, as well as mold making, part repair, etc.

•

Brushless Motor

•

Humanized Design

•
•
•

Wear-ResistantMetal GearsComplete Accessories

•
•

Metal GearsComplete Accessories

Key Features

Precision Machining

This 8.7 x 18 in metal lathe is powered by a robust 1250W motor, providing a high speed of 2500 RPM and spindle accuracy of 0.001 in / 0.03mm for precise machining results.

Brushless DC Motor

The 1250W brushless DC motor ensures quiet operation and extended lifespan and requires no maintenance. It ensures a reliable, long-lasting performance.

User-Friendly Design

The emergency stop button allows for quick shutdown, while the digital display makes it easy to track the machining process in real time, offering a secure and convenient user experience.
